| Product composition | Chemical resistant epoxy paint is a two-component amine adduct cured epoxy based coating with excellent resistance to various chemicals and good adhesion on steel and concrete surfaces |

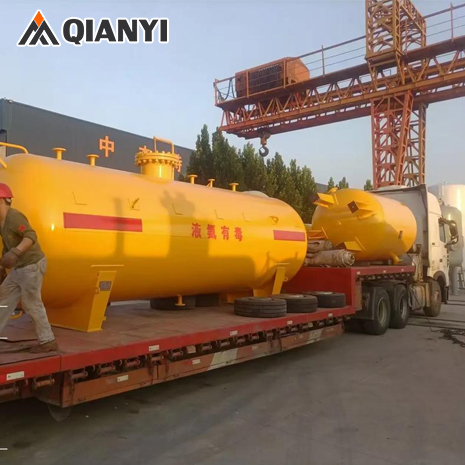

| scope of application | Can be used as an internal protective coating, as well as an inner lining paint for various chemical storage tanks and freshwater storage tanks |
| Physical parameters | Specific gravity -1.4kg/L |
| Volume solid content - about 45% |
| Mixed use period -2 hours |
| Pigments - Titanium Dioxide Inert Fillers |
Paint base - epoxy resin
|
| Film thickness - Wet film: 167 microns; Dry film: 75 microns |
| Mixing ratio - Base material chemical resistant epoxy paint: curing agent=4:1 (volume ratio) |
| Theoretical coating rate -6 ㎡/L |
| Paint surface - semi gloss |
| Flash point -26 ℃ |
| Color - It is recommended to use white. Can be paired with other colors |
| Repainting interval - minimum: 10 hours; Maximum: 3 days |
| Drying time - surface drying for 8 hours; actual drying for 7 days (fully cured) |
| Applicable instructions | The construction surface must be clean, dry, and free of loose paint layers, grease, and other dirt. The surface of the new steel plate should be sandblasted and cleaned to Sa 2.5 standard. After removing dust, it should be sprayed in a timely manner to prevent surface rusting |
| Construction method | Airless spraying, brushing or general spraying |
| Airless spraying | Spray hole: 0 021 |
| Spray pressure: 2900 pounds per square inch (200 kilograms per square centimeter) |
| Ordinary spraying | Any suitable spraying equipment can be used |
| thinner | Epoxy diluent |
| Maximum usage | Brush coating 5% |
| 5% airless spraying |
| Ordinary spraying 15% |
| safety rules | Flammable materials, keep away from sources of ignition. Smoking is not allowed within the construction area |
| During construction, air circulation must be maintained and certain protective measures must be taken. Avoid inhaling solvent vapors or paint mist. Do not touch the skin or eyes with this product |
| Store in a cool and dry place |
| Storage period | Sealed storage in a cool and dry place, with a shelf life of 12 months. If it exceeds the shelf life and passes inspection, it can still be used |
